  DC Electronic Load: Bộ tải điện tử DC của hãng APM
  Ghi chú: Bộ tải điện tử
  Nhãn hiệu: APM (Trung Quốc/China)
  [ Tài liệu Datasheet ]   [ Báo giá Quotation sheet ]   [ Shopping Shopping now ]   [ Views: 2807 ]   2022-07-15

 ◊ Mô tả chi tiết:

EL Series High-density Programmable DC Electronic Load

Voltage:200VDC - 1200VDC

Current:40A - 2880A

Power:600W - 27900W

This series High-density Programmable DC Electronic Load provides three voltage ranges 200V/600V/1200V. With industry-leading ultra-high power density technology, 4U height can reach 8.1kw.Supports CV, CC, CR and CP these 4 basic operating modes, as well as CV+CC, CV+CR, CR+CC these 3 complex operating modes. Full protection includings OCP, OPP, OTP, over voltage and reverse alarm. Support external control and monitor mode, the 0 to 10V input or output signal represent 0 to full range voltage or current. Provide OCP test, OPP test and Short circuit simulation to effectively solve the application demands for power and automated testing. Built-in RS232, RS485 and USB communication interfaces, LAN&GPIB communication card is optional. Two or more loads can be connected in master-slave parallel mode to provide more power or current capacity. This series DC load can be applied to battery discharge, DC charging station and power electronics and other electronics products.

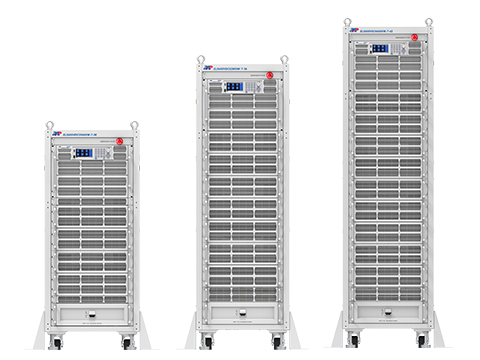

ELS Series DC Electronic Load System

Voltage:200VDC - 1200VDC

Current:1440A - 3000A

Power:39.6kW - 73.5kW

The standardized DC electronic load system is formed with 7U height units. The maximum input current and power of a single cabinet is up to 3000A, 73.5kW. Support master-slave configuration to increase the input capacity to 294kW. These cabinets use world famous circuit breaker to control the input of DC E-load moudle inside. After power on, the specified unit will be configured as a Master to control all of the slave units. In an emergency off situation the EMS will cut all units in the cabinet from AC supply, ensure safe operation.
