Category: Main/2. Test and Measuament Equipments/2.0. Digital Storage & Analog Oscilloscope

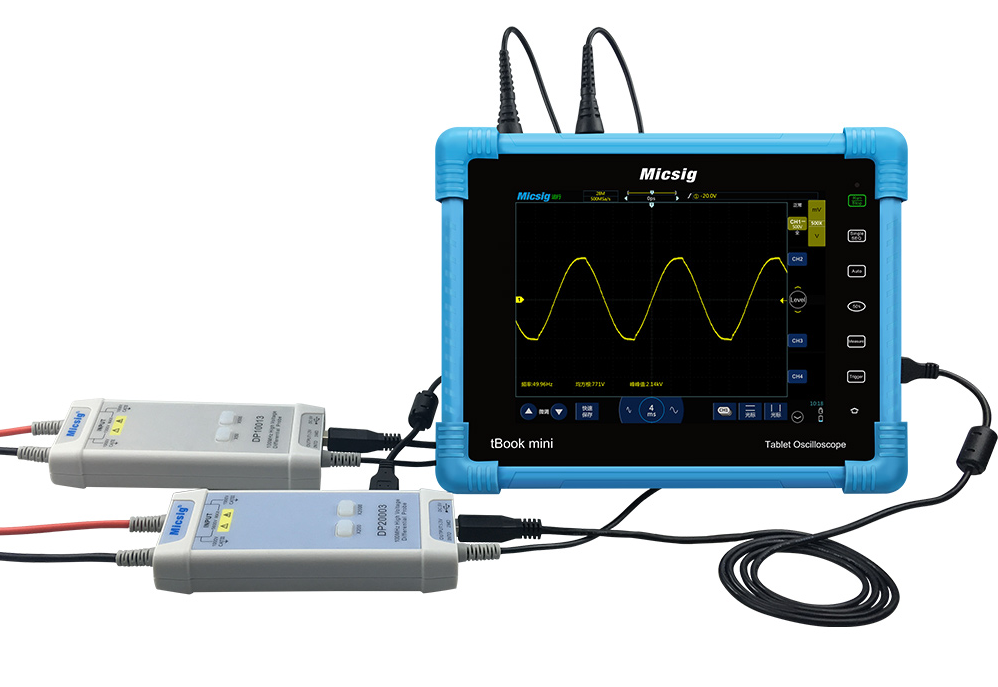

| | | | | ◊ Đặc điểm chính: | | Description/ Mô tảComparing all high-voltage differential probes in the market, you will find Micsig DP series is very cost effective. Lower price but even better performance than big brand. Many customers tested its quality. DP10007 is the newest product of DP series, it allows conventional earth-grounded oscilloscopes to be used for floating signal measurements of up to 700 V of differential voltage and common mode voltage. If you want to test higher voltage, you can consider DP10013, DP20003, which maximum input voltage can up to 1300V, and 5600V respectivly. Micsig DP là dòng đầu đo vi sai cao áp rất tiết kiệm chi phí. Giá thành thấp nhưng hiệu suất thậm chí còn tốt hơn so với sản phẩm từ thương hiệu lớn. Bên cạnh model truyền thống là DP10013 và DP20003, hãng đã ra mắt model mới nhất là DP10007, cho phép các dao động ký trên mặt đất thông thường tham chiếu để đo thả nổi (floating signal/ tín hiệu di động) lên đến 700V của điện áp vi sai và điện áp chế độ chung. Nếu bạn muốn kiểm tra điện áp cao hơn, hãy tham khảo model DP10013 và DP20003 với điện áp đầu vào tối đa tương ứng lên đến 1300V và 5600V. |
|
|
DP10013 key features:
100MHz bandwidth User-selectable attenuation settings of 50:1 or 500:1 Rated to measure differential and common mode voltage up to ±1300 V at 500:1 mode USB host port of scope or PC to supply power Compatible with any oscilloscope
DP20003 key features:
100MHz bandwidth User-selectable attenuation settings of 200:1 or 2000:1
Rated to measure differential and common mode voltage up to ±5600 V at 2000:1 mode
USB host port of scope or PC to supply power
Compatible with any oscilloscope
DP10007 key features:
100MHz bandwidth User-selectable attenuation settings of 10:1 or 100:1 Rated to measure differential and common mode voltage up to ±700 V at 100:1 mode USB host port of scope or PC to supply power Compatible with any oscilloscope
|
Model
|
DP20003
|
DP10013
|
DP10007
|
|
Bandwidth
|
100MHz
|
100MHz
|
100MHz
|
|
Rise
Time
|
3.5ns
|
3.5ns
|
3.5ns
|
|
Attenuation
|
200X
2000X
|
50X
500X
|
10X
100X
|
|
Gain
accurecy
|
±2%
|
±2%
|
±2%
|
|
Maximum
Differential Test Voltage（DC+AC
PK）
|
560V（200X）
5600V（2000X）
|
130V（50X）
1300V（500X）
|
70V（10X）
700V（100X）
|
|
Maximum
input common mode voltage（DC+AC
PK）
|
CAT
III 1000V
|
CAT
II 1000V
|
CAT II
600V
CAT I 1000V
|
|
Input
referred noise
|
≤160mVrms（200X）
≤920
mVrms（2000X）
|
≤40mVrms（50X）
≤230
mVrms（500X）
|
≤15mVrms（10X）
≤60mVrms（100X）
|
|
Common
Mode Rejection Ratio
|
＞80dB（DC）
＞60dB（100KHz）
＞50dB（1MHz）
|
＞80dB（DC）
＞60dB（100KHz）
＞50dB（1MHz）
|
≤-80dB@50Hz
≤-60dB@20KHz
≤-50dB@1MHz
|
|
Input
Impedance
|
50MΩ/1.25pF（differential）
25MΩ/2.5pF（single-ended
to ground）
|
10MΩ/1pF（differential）
5MΩ/2pF（single-ended
to ground）
|
8MΩ/1.25pF（differential）
4MΩ/2.5pF（single-ended
to ground）
|
|
Output
Voltage
|
≤3V
|
≤3V
|
≤7V
|
|
Overrange
Alarm
|
Button
light flashes
|
Button
light flashes
|
Button
light flashes
|
|
Power
Supply
|
DC
5V，USB Supply
|
DC
5V，USB Supply
|
DC
5V，USB Supply
|
|
Power
|
0.85W
|
0.85W
|
1.25W
|
|
Dimension
|
14.5cm*6cm*2.7cm
|
14.5cm*6cm*2.7cm
|
14.5cm*6cm*2.7cm
|
|
Input
cable length
|
Approx 45cm
|
Approx 45cm
|
Approx 45cm
|
|
Output
cable length
|
Approx 90cm
|
Approx 90cm
|
Approx 90cm
|

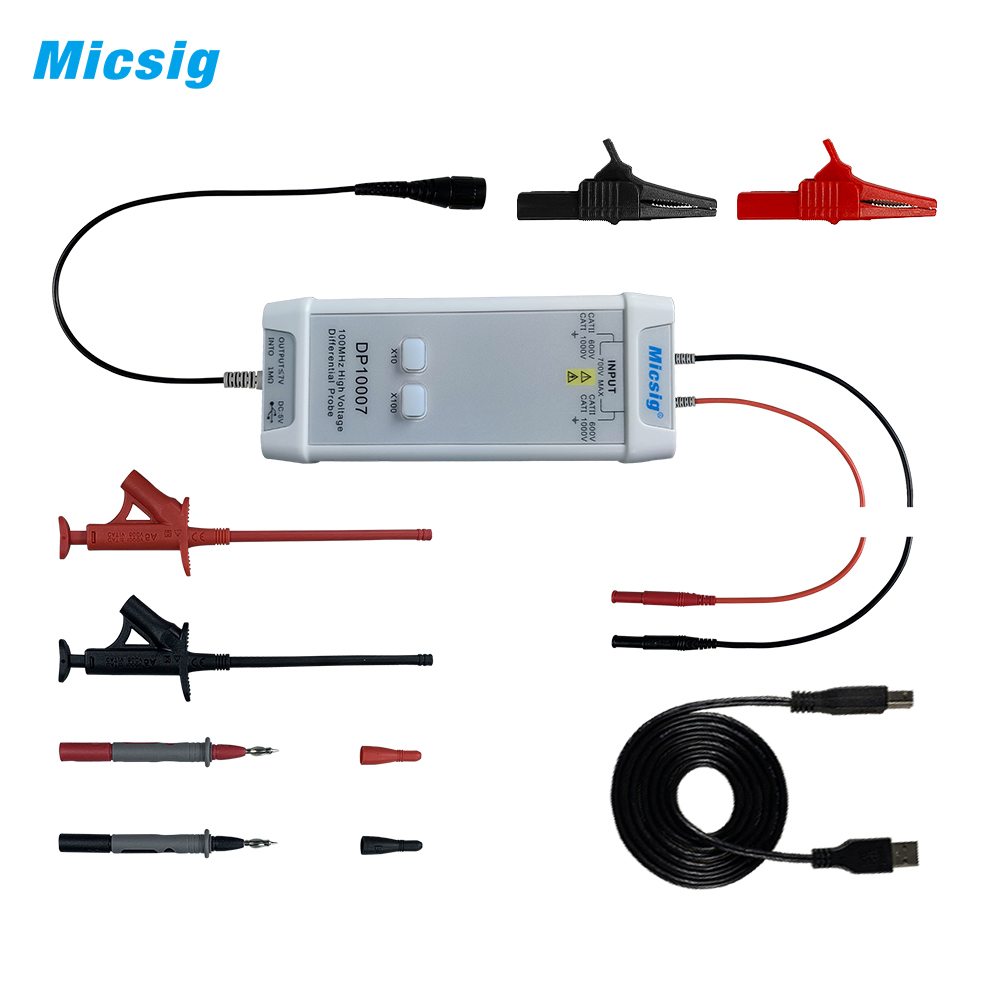

DANH SÁCH ĐÓNG GÓI:DP10007: DP10007probe X 1 Alligator Clips (red &black, 1 pair) Test Probes (red& black, 1 pair) Test Hooks (red& black, 1 pair) USB Cable X 1

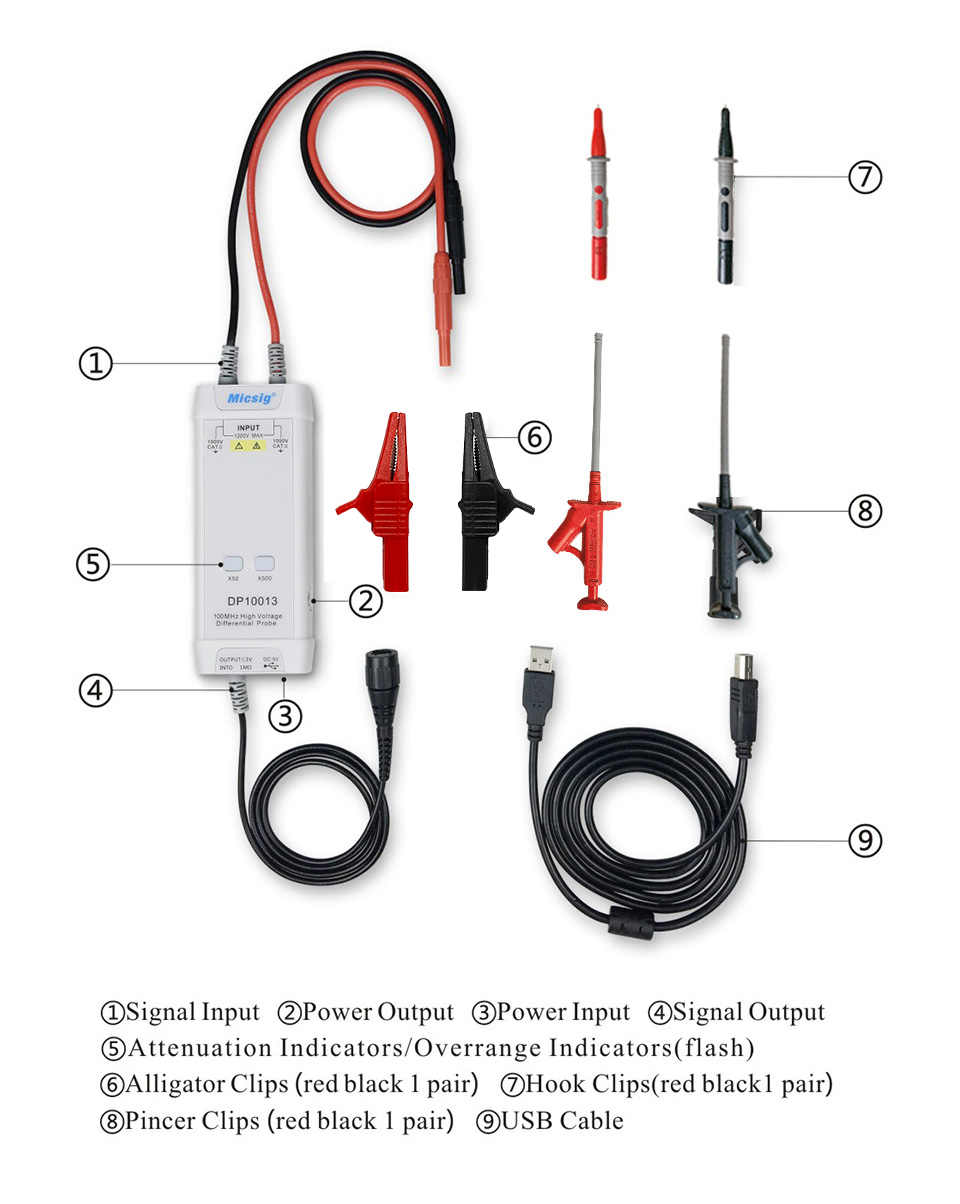

DP10013 accessories: DP10013 probe X 1 Alligator Clips (red &black, 1 pair) Test Probes (red& black, 1 pair) Test Hooks (red& black, 1 pair) USB Cable X 1
DP20003 accessories: DP20003 probe X 1 Alligator Clips (red &black, 1 pair) Test Probes (red& black, 1 pair) Test Hooks (red& black, 1 pair) USB Cable X 1
