  DP750-100: Đầu đo vi sai cao áp/ High-voltage Differential Probe
  Part#: MICSIG DP750-100
  Ghi chú: Que đo vi sai cao áp
  Nhãn hiệu: MICSIG (Trung Quốc/ China)
  Cấu hình: 100MHz, 50X / 500X, 50X: 75V & 500X: 750V
  [ Tài liệu Datasheet ]   [ Quotation Quotation sheet ]   [ Shopping Shopping now ]   [ Views: 3628 ]   2022-07-17
 ◊ Đặc điểm chính:

The leads and probe are with shielded design, interface ends are integrated in a compact box, no need to twist the cables, leads to a lower noise floor and has less interference.

Support one-press Zero calibration and automatic overrange alarm.

Directly powered by Micsig UPI interface, realise auto scaling setup, can also powered by oscilloscope via USB cable.

  • Bandwidth:100MHz
  • Max. Differential Test Voltage(DC+AC PK):750Vpk
  • Attenuation:50X ;500X
  • Gain Accuracy :±2%




 ◊ Mô tả chi tiết:

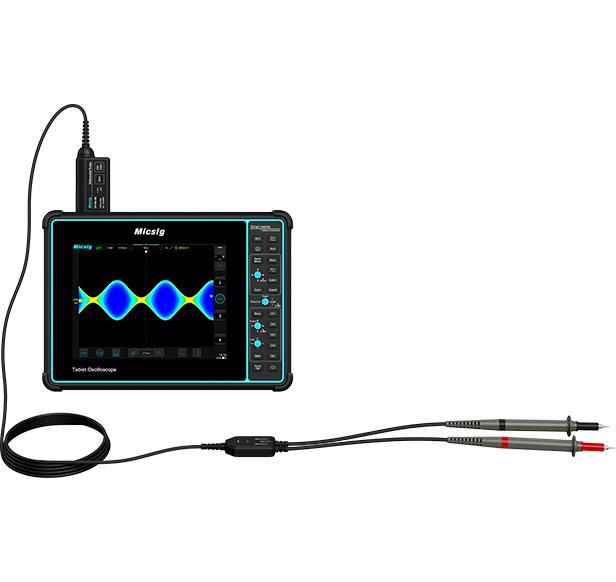

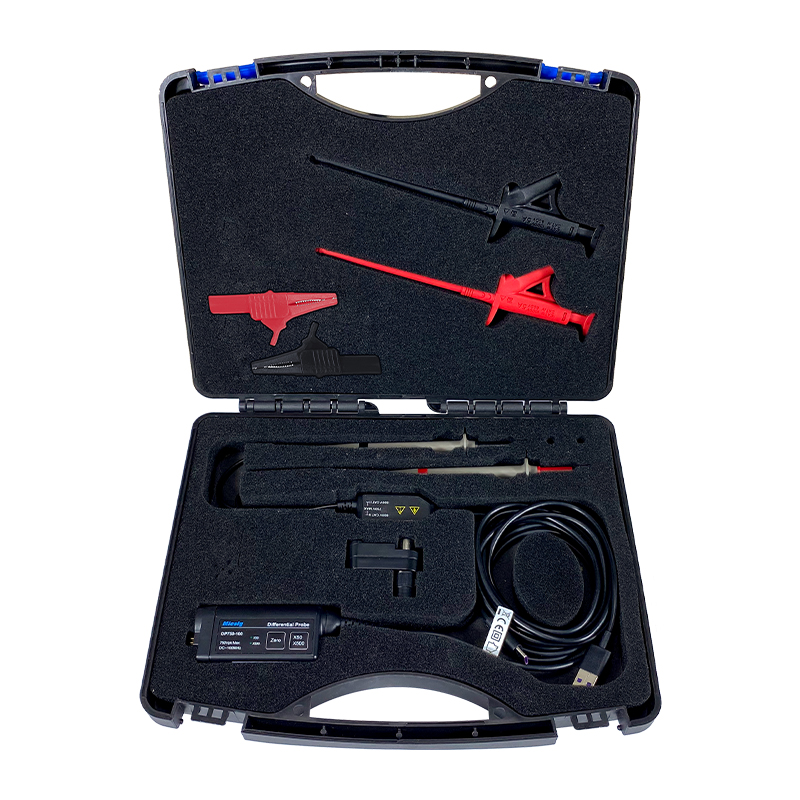

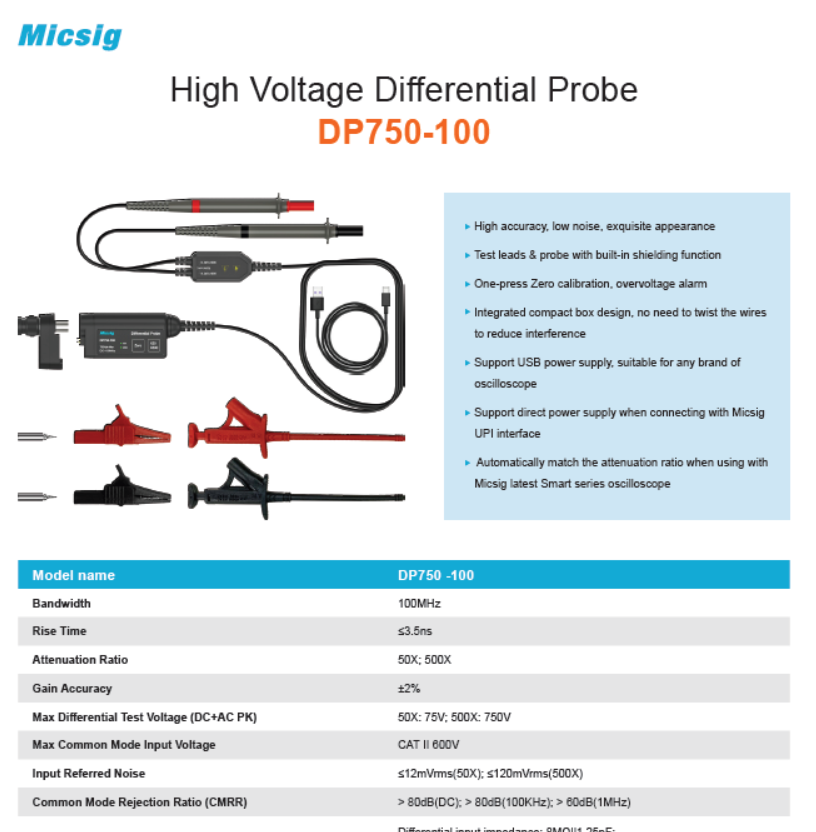

Key Specifications

 Model DP750-100
Bandwidth100MHz
Rise time≤3.5ns
Attenuation50X ; 500X
Gain accuracy±2%

Max. Differential Test Voltage(DC+AC PK)

50X: 75V
500X: 750V
Max. input common mode voltage(DC+AC PK)CAT II 1000V


Input referred noise

≤3mVpp(50X)
≤ 3mVpp(500X)


Common Mode Rejection Ratio

> 80dB (DC)
> 80dB (100KHz)
> 60dB (1MHz)


Input Impedance

8MΩ||1.25pF(differential)

4MΩII2.5pF (single end to ground)

Output Voltage≤ 1.4V
Power1W
Power supplyDC 5V,USB Supply
Overrange AlarmButton light flashes


Dimension

Power Supply Box: 80*37*22 mm
Signal In/Output Box: 49*25*12.5 mm
Input cable length15cm
Output cable length100cm
Operating temperature0℃-40℃
Operating humidity10%-85%







 Thêm chi tiết:

DP750 User Manual
