Danh mục nội dung: Danh mục chính/2. Thiết bị đo lường và kiểm tra điện tử/2.1. Thiết bị phân tích logic, phổ và mạng Vector; Thiết bị RF


  Cobalt USB VNAs, 20GHz: Các bộ Phân tích Mạng Vector COBALT, lên tới 20GHz 2018-08-20

Part#: COBALT_VNAS_20GHZ
Ghi chú : Phân tích mạng vector, dòng cao cấp
Download Documents   Báo giá Quotation sheet

Nhãn hiệu: Copper Mountain Technologies

Xuất xứ (C/O): Liên Bang Nga/Russia

(Hits: 1655)

Tính năng :

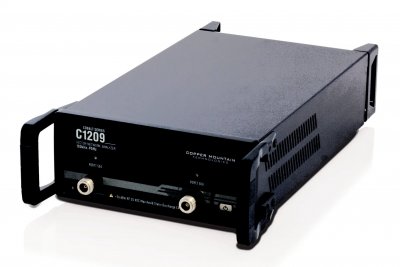

Nội dung ở đây là thông tin tóm tắt, mô tả chung về họ các bộ phân tích mạng Vector COBALT của hãng Copper Moutain, bao gồm: COBALT C1209 VECTOR NETWORK ANALYZERCOBALT C1220 VECTOR NETWORK ANALYZERCOBALT C2220 VECTOR NETWORK ANALYZER.

This new series of high-performance vector network analyzers (VNAs) offers an unmatched price-performance combination for S-parameter measurement between 100 kHz and 20 GHz. The design and production of Cobalt VNAs incorporates several innovative new manufacturing and test approaches.

Dòng các bộ phân tích mạng Vector (VNAs) có công năng cao mới này đáp ứng yêu cầu cao ở mức giá hạ hơn cho nhu cầu đo lường tham số S ở khoảng giữa 100KHz và 20GHz. Việc thiết kế và sản xuất các thiết bị Cobal VNAs đòi hỏi sự kết hợp nhiều phương pháp kiểm tra và sản xuất mới đầy sáng tạo.

  Mô tả chi tiết :

C1220 2-Port 20 GHz Analyzer

 C1220 Vector Network Analyzer delivers industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software.

This “full rack” vector network analyzer with dimensions of 16.9″ x 17.3″ x 5.5″ (430 x 440 x 140 mm) and a weight of just 31 lbs. (14 kg), can be used in the laboratory and in production testing, without requiring a lot of space. The VNA can be integrated into production test system via Manufacturing Test plug-in

Auxiliary Board Option is available on all Cobalt VNAs at the time of order (factory-installed) or as an add-on at a later date.

C1220 VNA includes an RF measurement module and S2 software application which runs on a Windows PC, laptop, or tablet, connecting to the measurement hardware via USB interface. S2 software can be installed on multiple computers that share the use of the analyzer measurement module.

Specifications:

· Frequency range: 100 kHz to 20 GHz

· Measured parameters: S11, S12, S21, S22

· Effective Directivity: 10 MHz to 10 GHz: 46 dB, 10 GHz to 20 GHz: 42 dB

· Dynamic range: 133 dB

· Measurement speed: 12 µs

· Impedance: 50 Ohm

Applications of the C1220 include SAW and BTS filter tuning, RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.

If you want to consult with our engineers about your specific application, please Ask an Engineer.

C1420 4-Port 20 GHz Analyzer

C1420 Vector Network Analyzer delivers industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software.

This “full rack” vector network analyzer with dimensions of 23.6″ x 17.3″ x 5.5″ (600 x 440 x 140 mm) and a weight of just 48.5 lbs. (22 kg), can be used in the laboratory and in production testing, without requiring a lot of space. The VNA can be integrated into production test system via Manufacturing Test Plug-in

Auxiliary Board Option is available on all Cobalt VNAs at the time of order (factory-installed) or as an add-on at a later date.

C1420 VNA includes an RF measurement module and S4 software application which runs on a Windows PC, laptop, or tablet, connecting to the measurement hardware via USB interface. S4 software can be installed on multiple computers that share the use of the analyzer measurement module.

Specifications:

· Frequency range: 100 kHz to 20 GHz

· Measured parameters: S11,…S44

· Effective Directivity: 100 kHz to 10 GHz: 46 dB, 10 GHz to 20 GHz: 42 dB

· Dynamic range: 133 dB

· Measurement speed: 12 µs

· Impedance: 50 Ohm

Applications of the C1420 include SAW and BTS filter tuning, RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.

If you want to consult with our engineers about your specific application, please Ask an Engineer.

C2220 2-Port 20 GHz Analyzer, Direct Receiver Access

C2220 Vector Network Analyzer delivers industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software. The C2220 network analyzer has direct receiver access for special applications involving external directional coupling, including Load Pull and high power measurements.

This “full rack” vector network analyzer with dimensions of 17″ x 17.3″ x 5.5″ (430 x 440 x 140 mm) and a weight of just 31 lbs. (14 kg), can be used in the laboratory and in production testing, without requiring a lot of space. The VNA can be integrated into production test system via Manufacturing Test Plug-in

Auxiliary Board Option is available on all Cobalt VNAs at the time of order (factory-installed) or as an add-on at a later date.

C2220 VNA includes an RF measurement module and S2 software application which runs on a Windows PC, laptop, or tablet, connecting to the measurement hardware via USB interface. S2 software can be installed on multiple computers that share the use of the analyzer measurement module.

Specifications:

· Frequency range: 100 kHz to 20 GHz

· Measured parameters: S11, S12, S21, S22

· Effective Directivity: 10 MHz to 10 GHz: 46 dB. 10 GHz to 20 GHz: 42 dB

· Dynamic range: 130 dB

· Measurement speed: 12 µs

· Impedance: 50 Ohm

Applications of the C2220 include SAW and BTS filter tuning, RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.

If you want to consult with our engineers about your specific application, please Ask an Engineer.

C4220 2-Port 20 GHz Analyzer, Frequency Extension Compatible

C4220 Vector Network Analyzer delivers industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software. This VNA is frequency extender compatible and is the anchor network analyzer for the CobaltFx frequency extender system.

This “full rack” vector network analyzer with dimensions of 17″ x 17.3″ x 5.5″ (430 x 440 x 140 mm) and a weight of just 31 lbs. (14 kg), can be used in the laboratory and in production testing, without requiring a lot of space/ The VNA can be integrated into production test system via Manufacturing Test plug-in. Auxiliary Board Option is available on all Cobalt VNAs at the time of order (factory-installed) or as an add-on at a later date.

C4220 VNA includes an RF measurement module and S2 software application which runs on a Windows PC, laptop, or tablet, connecting to the measurement hardware via USB interface. S2 software can be installed on multiple computers that share the use of the analyzer measurement module.

Specifications:

· Frequency range: 100 kHz to 20 GHz

· Measured parameters: S11, S21, S12, S22

· Effective Directivity: 46dB

· Dynamic range: 133 dB

· Measurement speed: 12 µs

· Impedance: 50 Ohm

Applications of the C4220 include SAW and BTS filter tuning, RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.

If you want to consult with our engineers about your specific application, please Ask an Engineer.

C2420 4-Port 20 GHz Analyzer, Direct Receiver Access

C2420 Vector Network Analyzer delivers industry-leading dynamic range and sweep speed, with all the features engineers have come to expect included standard in our software. The C2420 network analyzer has direct receiver access for special applications involving external directional coupling, including Load Pull and high power measurements.

This “full rack” vector network analyzer with dimensions of 23.6″ x 17.3″ x 5.5″ (600 x 440 x 140 mm) and a weight of just 48.5 lbs. (22 kg), can be used in the laboratory and in production testing, without requiring a lot of space. The VNA can be integrated into production test system via Manufacturing Test plug-in. Auxiliary Board Option is available on all Cobalt VNAs at the time of order (factory-installed) or as an add-on at a later date.

C2420 VNA includes an RF measurement module and S4 software application which runs on a Windows PC, laptop, or tablet, connecting to the measurement hardware via USB interface. S4 software can be installed on multiple computers that share the use of the analyzer measurement module.

Specifications:

· Frequency range: 100 kHz to 20 GHz

· Measured parameters: S11,…S44

· Effective Directivity: 100 kHz to 10 GHz: 46 dB, 10 GHz to 20 GHz: 42 dB

· Dynamic range: 130 dB

· Measurement speed: 12 µs

· Impedance: 50 Ohm

Applications of the C2420 include SAW and BTS filter tuning, RF component design and testing, on-wafer probing, field testing, insertion loss measurement, distance to fault measurements, antenna matching, quality control, material measurements, and many others.

If you want to consult with our engineers about your specific application, please Ask an Engineer.



  Mô tả khác :




http://coppermountaintech.com/wp-content/uploads/2018/02/C4420-and-FEV-Extenders-335x230.png
